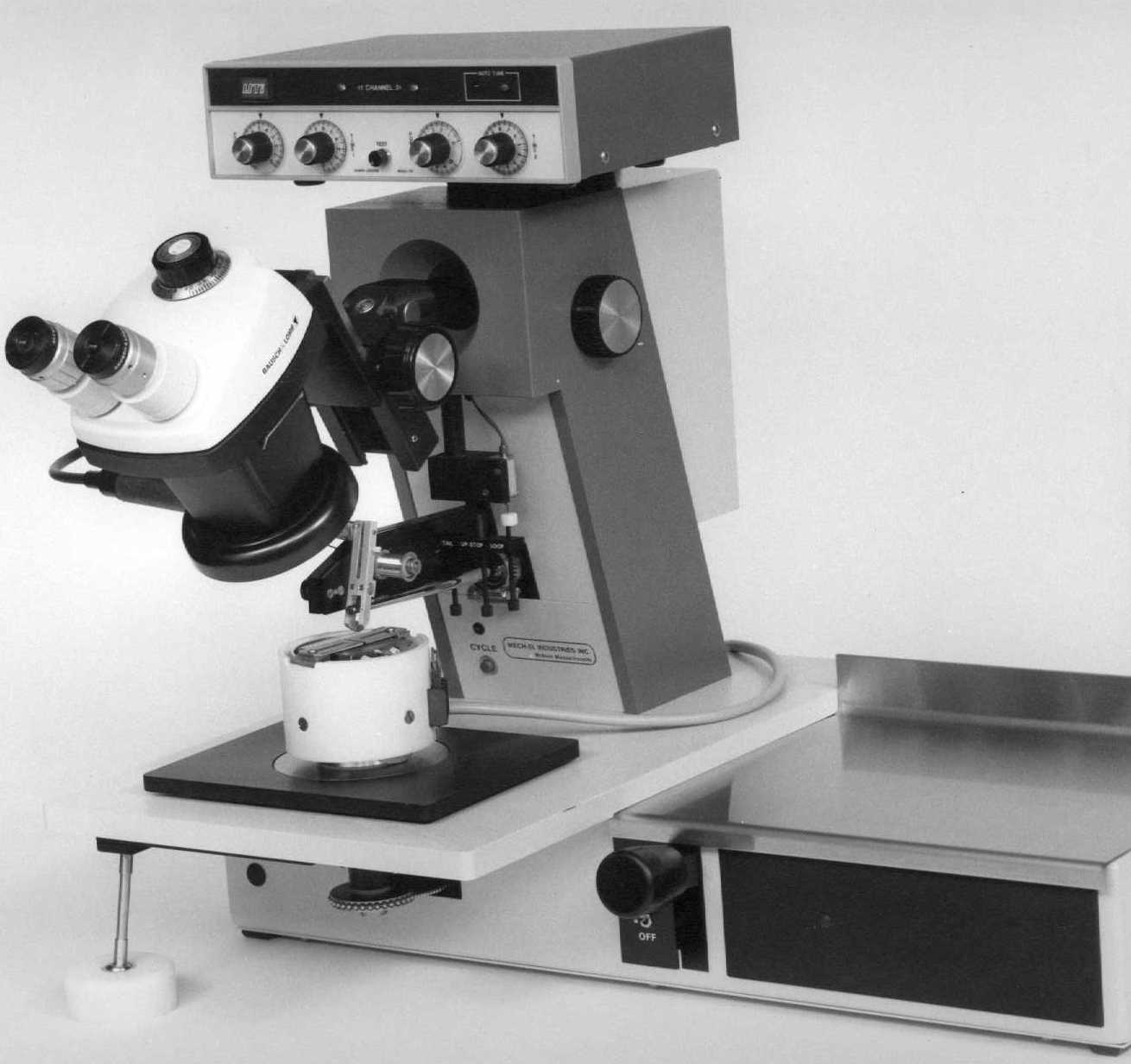

MECH-EL / MEI 907
The Mech-El/MEI 907 wedge bonder has been produced since the mid 1970’s and still provides a simple reliable solution to most wedge bonding needs.
SPECIFICATIONS:
| Bonding Processes: | Ultrasonic using aluminum wire. Thermocompression or thermosonic wire bonding using gold wire. |
| Wire sizes: | .5 mil - 3 mil wire and ribbon. |
| Tip Weight: | 15 - 150 grams. |
| Bonding tool size: | 1/16" shank x .828" long. |
| Optional- Heated Workstage: | Digital heat control option will regulate
temperature from ambient to 300°C +/- 0.5% (dependant upon application). |
| Ultrasonics: | Uthe 10G generator with 25PT transducer standard. |
| Micropositioner: | 6:1 standard. |
| Services: | Electrical: 110-115 VAC, 50/60Hz, 5 amps or
220-240 VAC, 50/60Hz, 2.5 amps. Air: 40 PSI (240 kPa)
minimum, if required. Vacuum: 20" (510 mm) Hg minimum, if required. |
| Dimensions: | Length: 23" (58.4cm) Width: 18" (45.7cm) Height 17.75" (45.1cm) Net Weight: 40 pounds (18 Kg) |
*Note: Exact dimensions are dependent upon the options on the machine.
